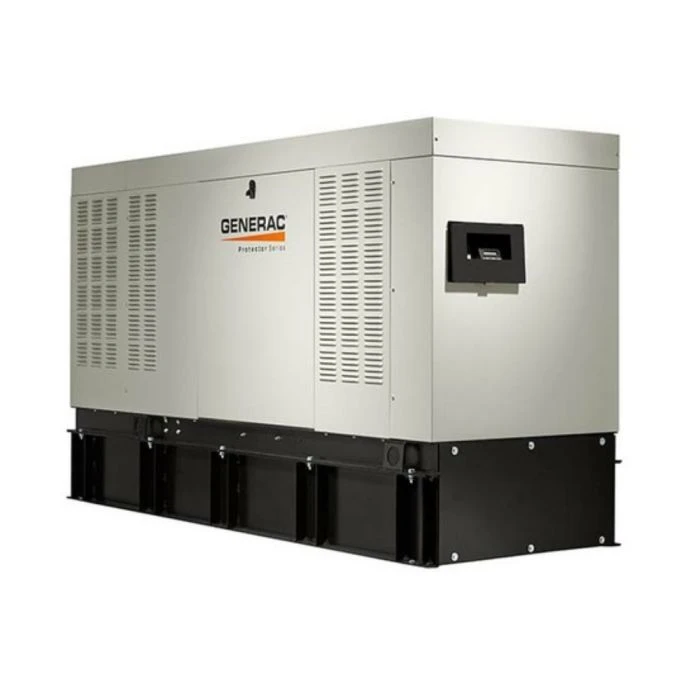

Generac RD03022 30kW Protector Aluminum Generator Diesel

Generac RD03022 – Protector Aluminum Generator Diesel

Features:

• EVOLUTION CONTROLLER – allows for easy monitoring and management of generator functions.
• QUIET-TEST – weekly self-test mode that runs at a lower RPM, is quieter, and consumes less fuel.
• 5 YEAR LIMITED WARRANTY
• CODE READY – compatibility with various codes, with external vent and fill, a UL/CUL 142-listed, double-walled base tank, a UL/CUL 2200-listed generator, and a wide range of code-driven accessories.
• Isochronous governor: Electronic governor control for tight and precise load response, and voltage/frequency regulation
• Same robust engines used on the Generac Industrial Power products
• External viewing window for easy indication of generator status and breaker position
• Removable doors for easy service and fuel fill access
• Generous stub-up area for easy connections with dual-rated lugs to accept either copper or aluminum conductors with removable kick-plate for stub-up access
• Compatible with Mobile Link
• Non-bid/Spec
• Will utilize the standard RTS or RXS switches

Specifications:

• Made In USA Yes
• Rated Watts 30kW
• Rated Amps 125
• Voltage 120/240V Single Phase
• AC Ton Rating 5 Ton
• Enclosure Aluminum
• UL Listed Yes
• Decibel Rating 7m 70 dbA @ normal operating load
• Starting System Automatic Start
• Low Oil Alert Yes
• Hour Meter Yes
• Battery Requirements 12V, Group 27F, 700 CCA
• Mounting Pad Requires Prepared Site
• Weight 1857 lbs
• Dimensions 95L x 35W x 59H
• Shipping Information
• Shipping Dimensions 59H X 35W X 95D
• Shipping Weight 1857 lbs

Engine:

• Engine Brand Perkins
• Engine Size 2.2L
• Engine RPM 1800
• Cast Iron Sleeve Yes
• Cooling System Liquid Cooled
• Alternator
• Frequency 60 Hz
• Auto Voltage Regulation Yes

Fuel:

• Type Diesel
• Tank Material Steel
• Gas Tank Size 61 Gallons
• Run Time 41.6 Hours

Transfer Switch:

• Model Sold Separately

Warranty Information:

• Consumer Warranty 5 Year Limited Warranty
